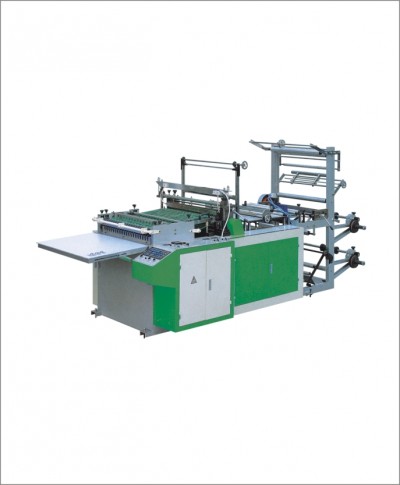

MD-RQL Bopp computer control heat cutting bag making machine

MD-RQL Bopp computer control heat cutting bag making machine
  1. Materials: BOPP, OPP, thermal contraction film, etc.
  2. Microcomputer control,stepping motor driving.
  3. double side sealing knife design,it can change the bag making type fast.(Flat knife and patterns knife)
  4. double unwinding design, the roll can be changed rapidly.



Model MD-RQL600 MD-RQL800 MD-RQL1000
Length of sealing and cutting 999mm 999mm 999mm
Width of sealing and cutting 580mm 780mm 980mm
Speed 40-130m/min 40-110m/min 40-80m/min
Total power 3kw 7kw 10kw
Outline dimension 3600X1200X1700mm 3600X1400X1700mm 3600X1600X1700mm
Weight 700kg 850kg 950kg
