Main Technical parameters:
| Model | 型号 | MD-HH50 | MD-HH55 |
| Suitable Material | 适用材料 | HDPE | |
| Max Film Width(mm) | 最大吹膜宽度 | 600 | 800 |
| Film Thickness(mm) | 薄膜厚度 | HD:0.008-0.08 | |
| Max Extrusion Output HD | 最大挤出量HD | 70kg/hr | 100kg/hr |

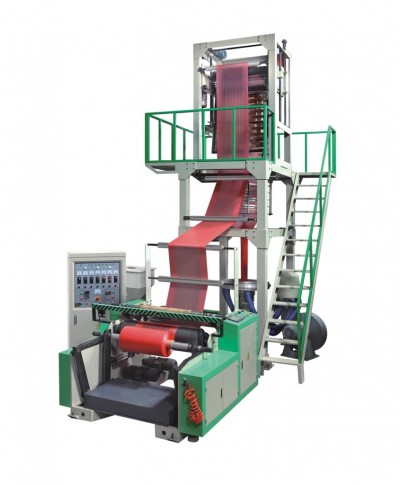

MD-HH HDPE high speed film blowing machine
| Extrusion unit 挤出机组 | |||
| Gear Box | 齿轮箱 | 173 | 180 |
| Screw Diameter(mm) | 螺杆直径 | φ50 | φ55 |
| Screw L/D Ratio | 螺杆长径比 | 30:1 | 30:1 |
| Screw’s Material | 螺杆材料 | 38 CRMOALA | |
| Barrel’s Material | 料筒材料 | 38 CRMOALA | |
| Barrel’s Cooling Fan | 料筒冷却 | 370W×3 | 370W×3 |
| Thermo Control (zone) | 料筒温度控制 | 3 | 3 |
| Driving Motor (kw) | 主电机功率 | 18.5 | 30 |
| Extrusion Die 模头 | |||
| Die Size (mm) | 模口 | HD:φ60/80 | HD:φ80/100 |
| Screen Changer | 换网器 | Standard manual | |
| Thermo Control (zone) | 温度控制 | 2 | 2 |
| Air Ring | 风环 | φ820mm Dual Air Ring | |
| Cooling Blower (kw) | 冷却风机 | 3 | 5.5 |
| Center Steady Stick | 中心稳定棒 | 1 PCS | |
| Take-UP Unit 牵引部分 | |||
| Roller Width (mm) | 牵引辊宽 | φ165×650 | φ165×850 |
| Embossing Roller Width | 压花轮宽 | 550 | 750 |
| Take-UP Motor (kw) | 引取电机功率 | 1.1 | 1.5 |
| Take-UP Speed(M/min) | 引取速度 | 10-100 | 10-100 |
| Height adjustable type | 上下升降式 | 700mm | |
| Winding Unit 收卷部分 | |||
| Type OF Winder | 收卷方式 | PLC Full Automatic with flying knife
after changing paper core.PLC Form PANASONIC |
|
| Roller Width (mm) | 收卷辊宽 | 700 | 900 |
| Winding Motor (kw) | 卷取功率 | 1.1 | 1.1 |
| Winding Speed(M/min) | 卷取速度 | 10-100 | 10-100 |
| Voltage | 电源 | 380V, 50HZ, 3PHASE | |
| Cover Dimensions (m) | 占地尺寸 | 5×2.0×4.8 | 5.2×2.28×5.2 |
| 40” Container Size | 40”装柜数量 | 3 SETS | 3 SETS |
| OPTIONAL EQUIPMENT 选择性配备 | ||
| 1)自动吸料机 | 1)AUTO LOADER | |
| 2)双功位收卷 | 2)DOUBLE WINDER | |
| 3)表面处理 | 3)CORONA | |
| 4)手动快换网装置 | 4)MANUAL MECHANICS SCREEN CHANGER | |
| 5)自动补气 | 5)AUTOMATICALLY SUPPLY AIR | |
