Main technical parameters:
| Model | 型号 | MD-45×2A | MD-45×2B |
| Suitable Material | 适用材料 | HDPE | |
| Max Film Width(mm) | 最大吹膜宽度 | 600 | 600 |
| Film Thickness(mm) | 薄膜厚度 | HD:0.008-0.08 | |
| Max Extrusion Output HD | 最大挤出量 | 55kg/hr | 45kg/hr |

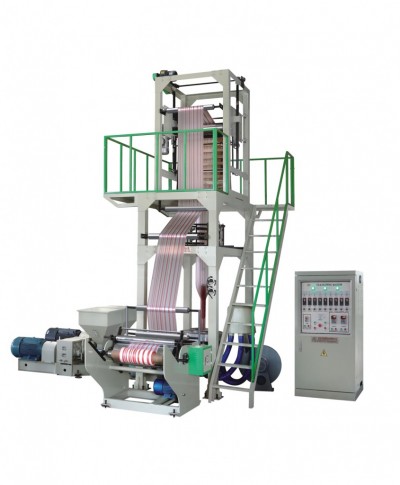

MD-45X2-600 Double color film blowing machine
| Extrusion unit 挤出机组 | |||
| Gear Box | 齿轮箱 | 2×133 | 133×2 |
| Screw Diameter(mm) | 螺杆直径 | φ45×2 | φ45×2 |
| Screw L/D Ratio | 螺杆长径比 | 28:1 | 28:1 |
| Screw’s Material | 螺杆材料 | 38 CRMOALA | |
| Barrel’s Material | 料筒材料 | 38 CRMOALA | |
| Barrel’s Cooling Fan | 料筒冷却 | 250W×2×2 | 250W×2×2 |
| Thermo Control (zone) | 料筒温度控制 | 3 | 3 |
| Driving Motor (kw) | 主电机功率 | 15 | 7.5×2 |
| Out of Proportion | 挤出比例 | 1:1 | 1:10 |
| Extrusion Die 模头 | |||
| Die Size (mm) | 模口 | HD:φ60 | |
| Screen Changer | 换网器 | Standard manual | |
| Thermo Control (zone) | 温度控制 | 2 | |
| Air Ring (mm) | 风环 | φ620 | |
| Cooling Blower (kw) | 冷却风机 | 2.2 | |
| Center Steady Stick | 中心稳定棒 | 1 PCS | |
| Take-UP Unit 牵引部分 | |||
| Roller Width (mm) | 牵引辊宽 | φ138×650 | |
| Embossing Roller Width | 压花辊宽 | 550mm | |
| Take-UP Motor (kw) | 引取电机功率 | 0.75 | |
| Take-UP Speed(M/min) | 引取速度 | 10-80 | 10-60 |
| Height adjustable type | 上下升降式 | 700mm | |
| Winding Unit 收卷部分 | |||
| Type OF Winder | 收卷方式 | Surface Friction Winder 摩擦式 | |
| Roller Width (mm) | 收卷辊宽 | 700 | |
| Winding Motor (N.M) | 卷取功率 | 6 | |
| Winding Speed(M/min) | 卷取速度 | 10-80 | 10-60 |
| Voltage | 电源 | 380V, 50HZ, 3PHASE | |
| Cover Dimensions (m) | 占地尺寸 | 4.0×3.0×4.3 | 4.0×3.0×4.3 |
| OPTIONAL EQUIPMENT 选择性配备 | ||
| 1)自动吸料机×2个 | 1)AUTO LOADER×2PCS | |
| 2)双功位收卷 | 2)DOUBLE WINDER | |
| 4)气涨轴 | 4)AIR SHAFT | |
| 6)全自动收卷 | 6)FULL AUTOMATIC WINDER | |
| 7)自动补气 | 7)AUTOMATICALLY SUPPLY AIR | |
